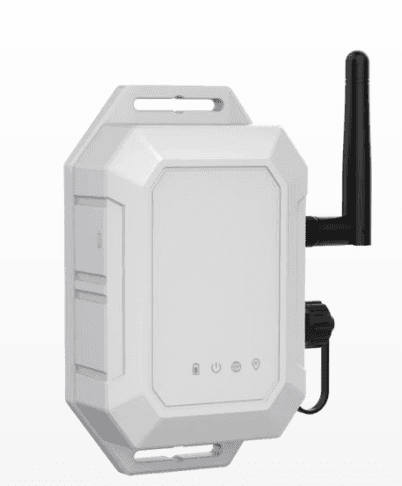

A rugged BLE-to-cellular gateway with GPS/BeiDou positioning, offline buffering and a backup battery for mobile monitoring deployments.
A rugged BLE-to-cellular gateway with GPS/BeiDou positioning, offline buffering and a backup battery for mobile monitoring deployments. Review the installation environment, network region and selected variant with our team before ordering.
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| BLE chipset | Nordic nRF52840 | — | — |
| Bluetooth | BLE 5.0 | — | — |
| GNSS | GPS + BeiDou | — | — |
| Main input | 4.8–60 V DC | — | — |
| Backup battery | 3200 mAh | — | — |
| Memory | 32 MB | — | — |
| Protection | IP67; IK09 | — | — |
| Dimensions | 122.4 × 72.9 × 33.8 mm | — | — |
| Operating temperature | -20°C to +60°C | — | — |
